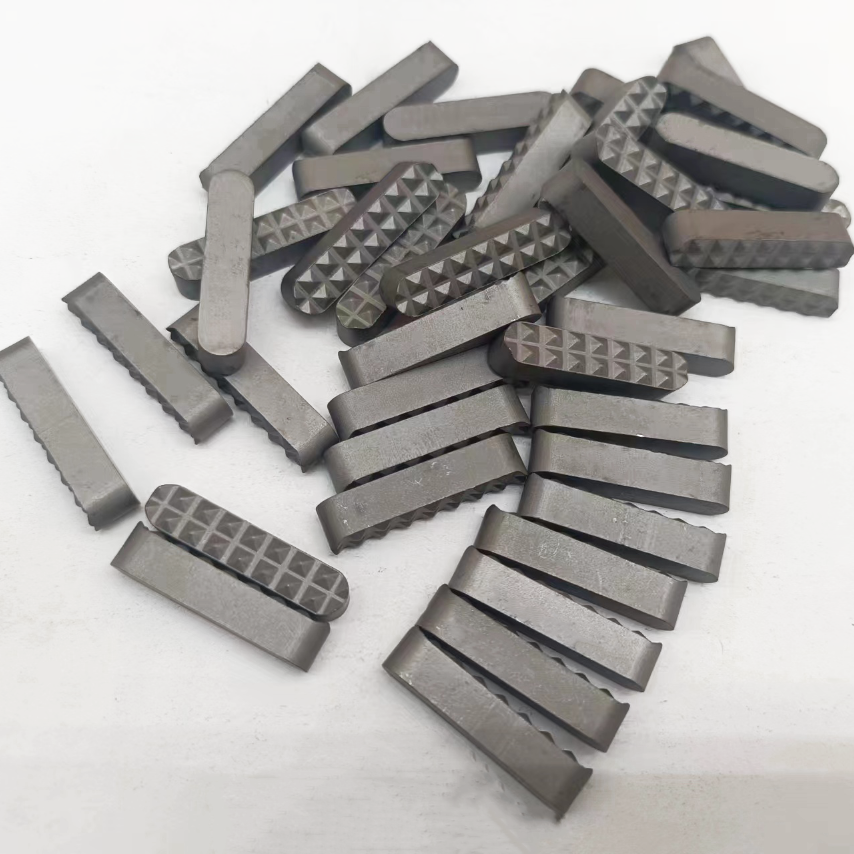

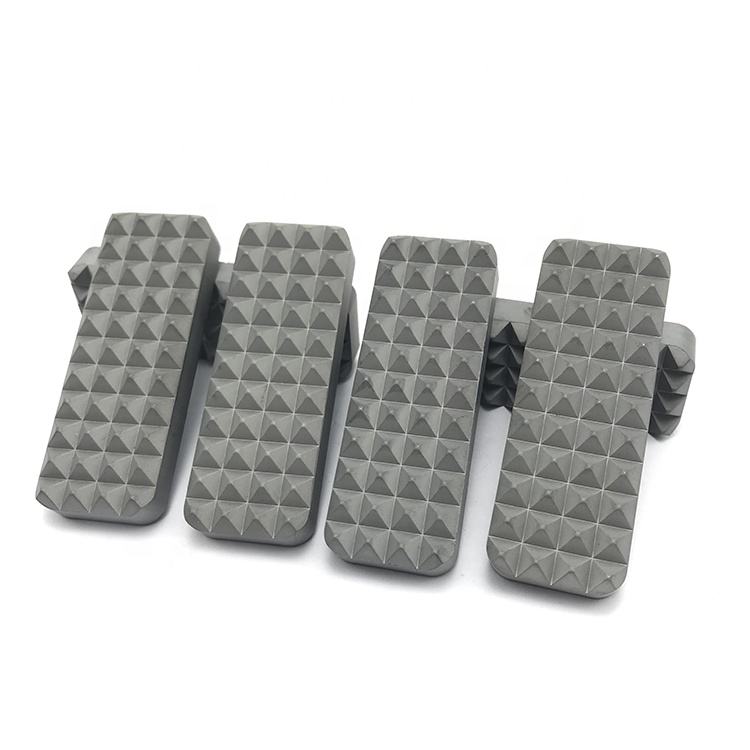

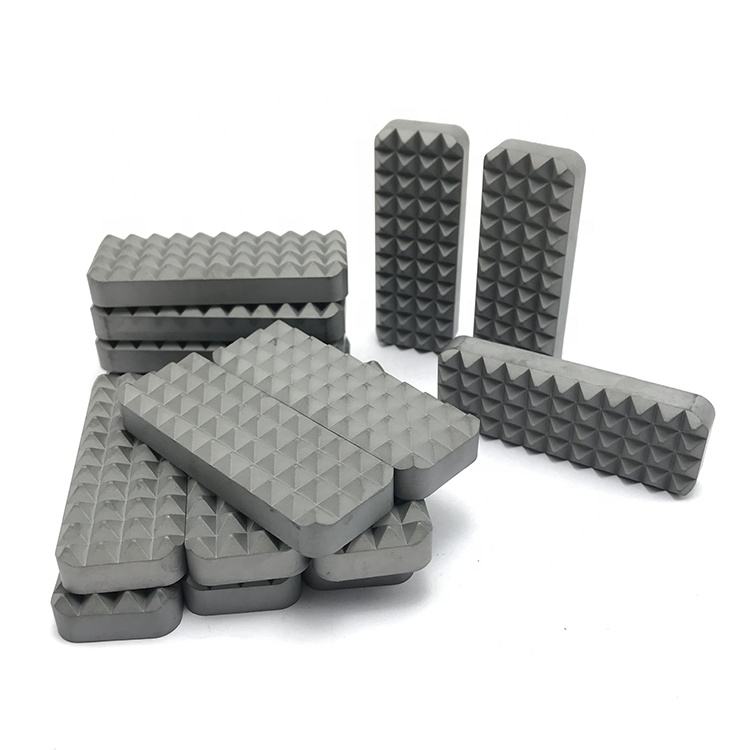

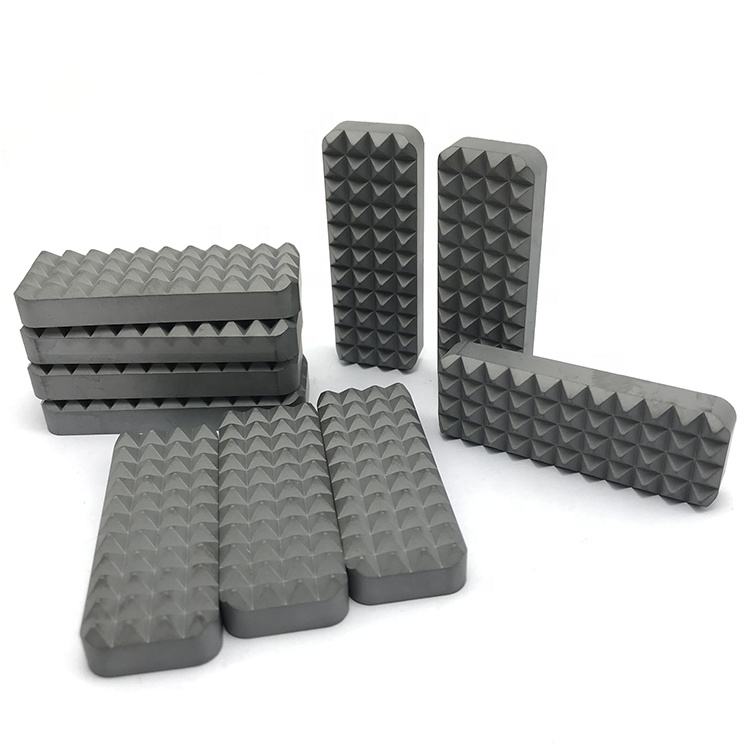

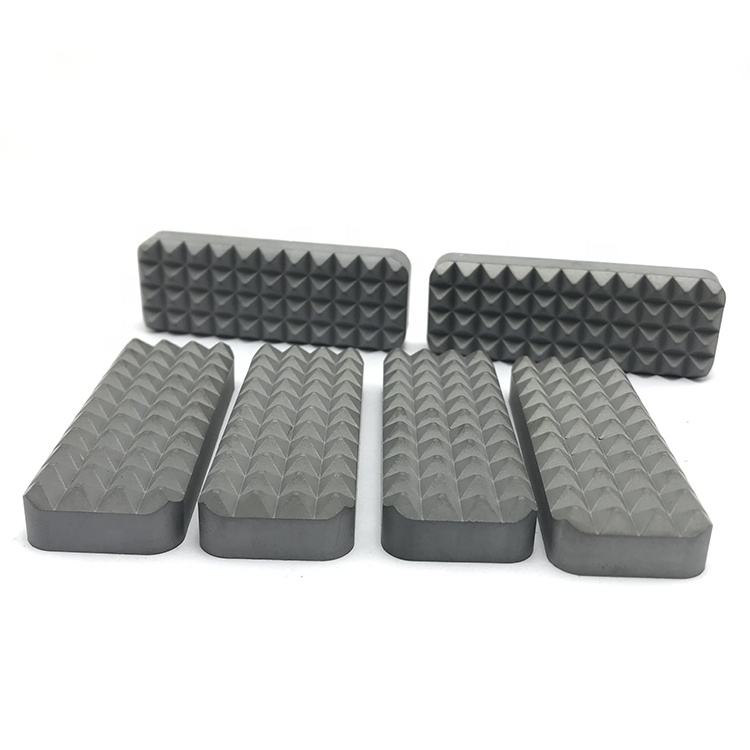

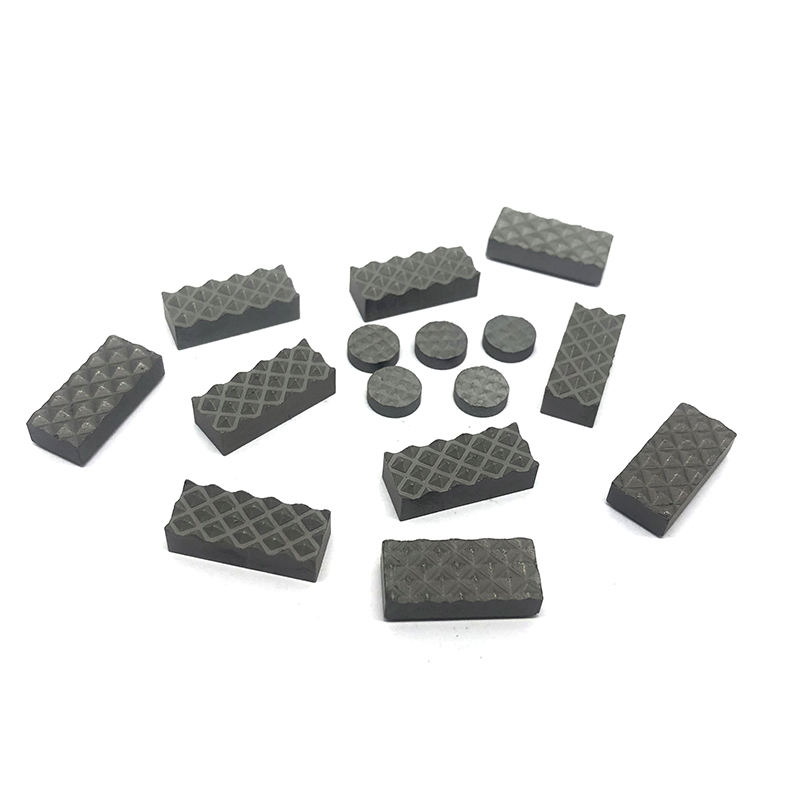

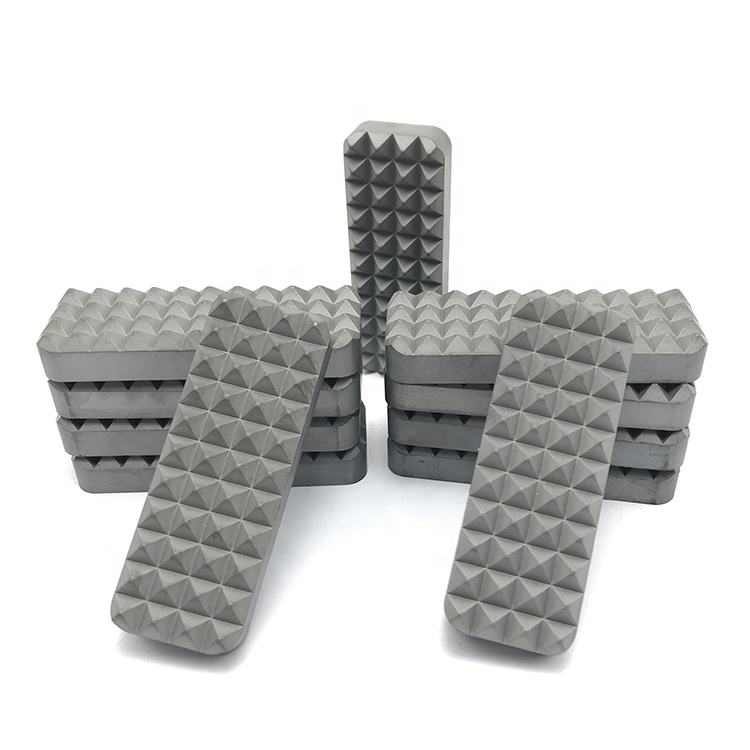

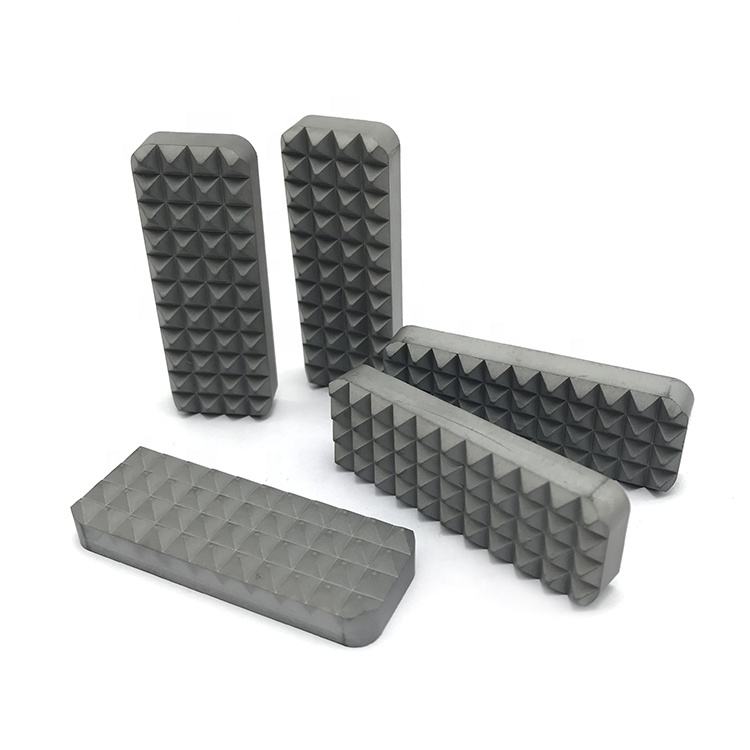

Tungsten carbide jaw gripper insert

Product Details

Feature:
Tungsten Jaw Grippers
Tungsten Carbide Chuck Jaws/ Gripper Pads/Inserts the gripper inserts are welded into the steel jaws as chuck jaw for gripping
drill rods used in diamond drilling industry.

Tungsten Carbide gripper inserts are used in different ways, such as diamond drilling, coal mining, stone mining and oil mining.
Carbide Inserts for Hydraulic and Mechanical chucks
Tungsten Carbide Gripper Insert Gripper Teeth
Carbide gripper inserts are our featured products for worldwide markets.
Steady performance, long service time and used in different ways for mining field.
Like coal mining, stone mining and oil mining.

We can support custom Inserts Types.Welcome to Inquriy
A wide range of high wear resistant tungsten carbide inserts was provided with many teeth patterns and shapes to suit chucks from manufacturer all over the world.
a. With one end round
b. Straight at two ends
c. Round at two ends

Grade	Density (g/cm³)	Hardness (HRA)	T.R.S (Mpa)	Application Recommended
YG4C	15.00	89.5	1800	Mainly used as small buttons for percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations.
YG6	15.8	89.5	1700	Mainly used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft,medium-hard formations.
YG8	14.7	88.5	2300	Mainly used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations.
YG13C	14.3	86.0	2500	Mainly used as the inserts and buttons of tricone bits rotary-percussive bits and heavy rock drill bits to cut medium-hard and hard formations.
YG15	14.0	86.5	2500	It is stronger, and is mainly used as the inserts and buttons of rotary-percussive bits, heavy rock drill bits to cut hard and very hard formations.
